All kinds of liquids, with vapors, attachments, foam, condensate and ammonia applications

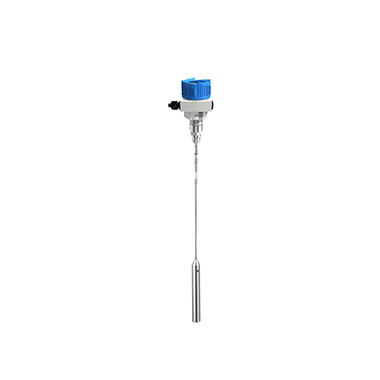

| AHL-6100A | |
| Application | All kinds of liquids, with vapors, attachments, foam, condensate and ammonia applications |
| Range | Rod type: 4m (due to transportation) Coaxial tubular type: 4m (due to transportation) Cable type: up to 75 meters |
| Probe/material | Rod, cable, coaxial tube/SS 316L or Hastelloy |
| Connection type/material | Thread or flange |
| Temperature | -60…+200℃ |
| Pressure | -l...+40bar/-100...+4000kPa |
| Measurement Accuracy | ±2mm |
| Output | • 4...20mA/HART-two-wire system • 4...20mA/HART-four-wire system • Profibus PA • Foundation Fieldbus • Modbus-, Level Master-protocol |
| Safety Certification | • ATEX Explosion Permit • IEC with license • Marine Permit • Spill Containment • FM • CSA • Gost |
